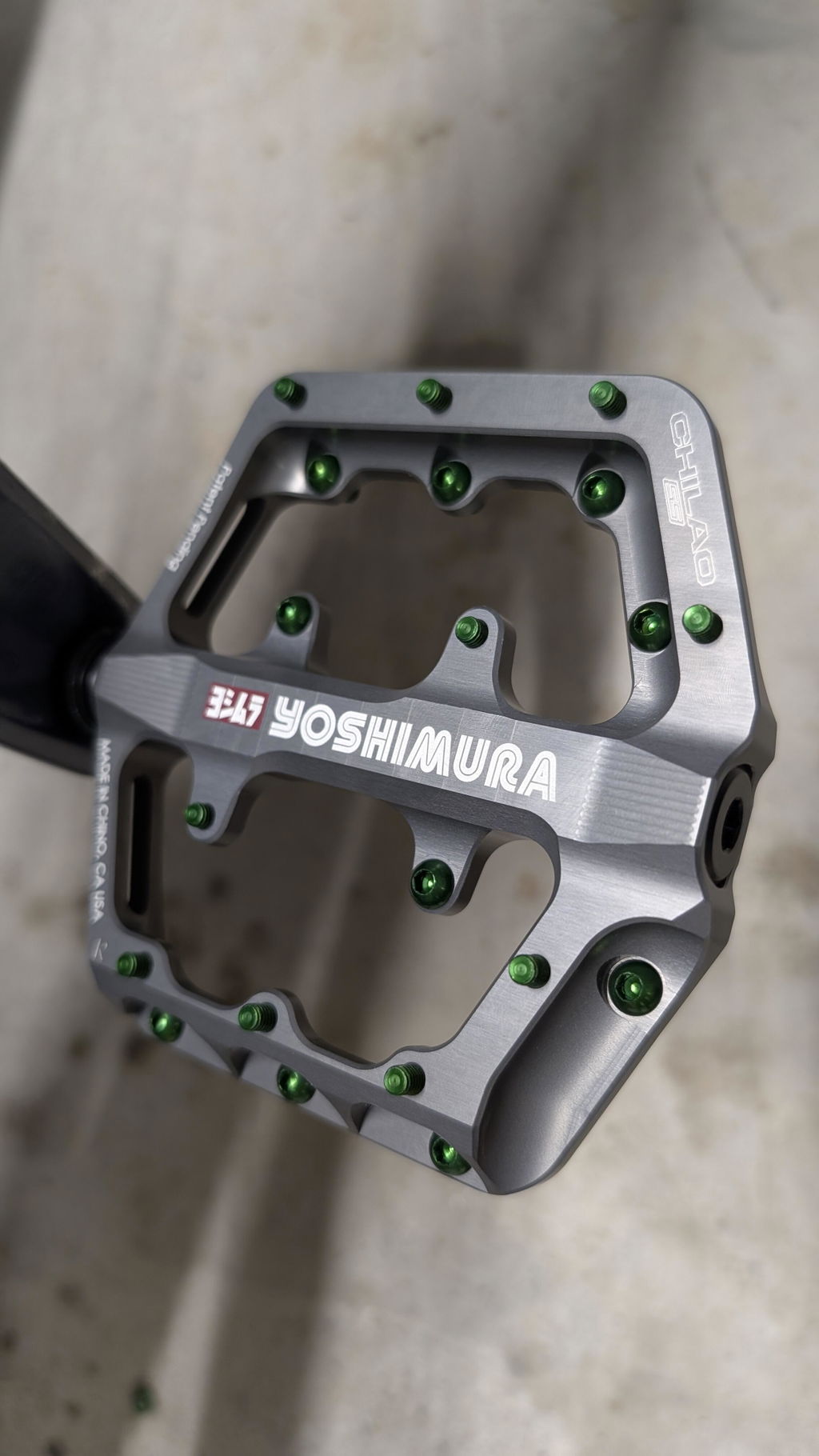

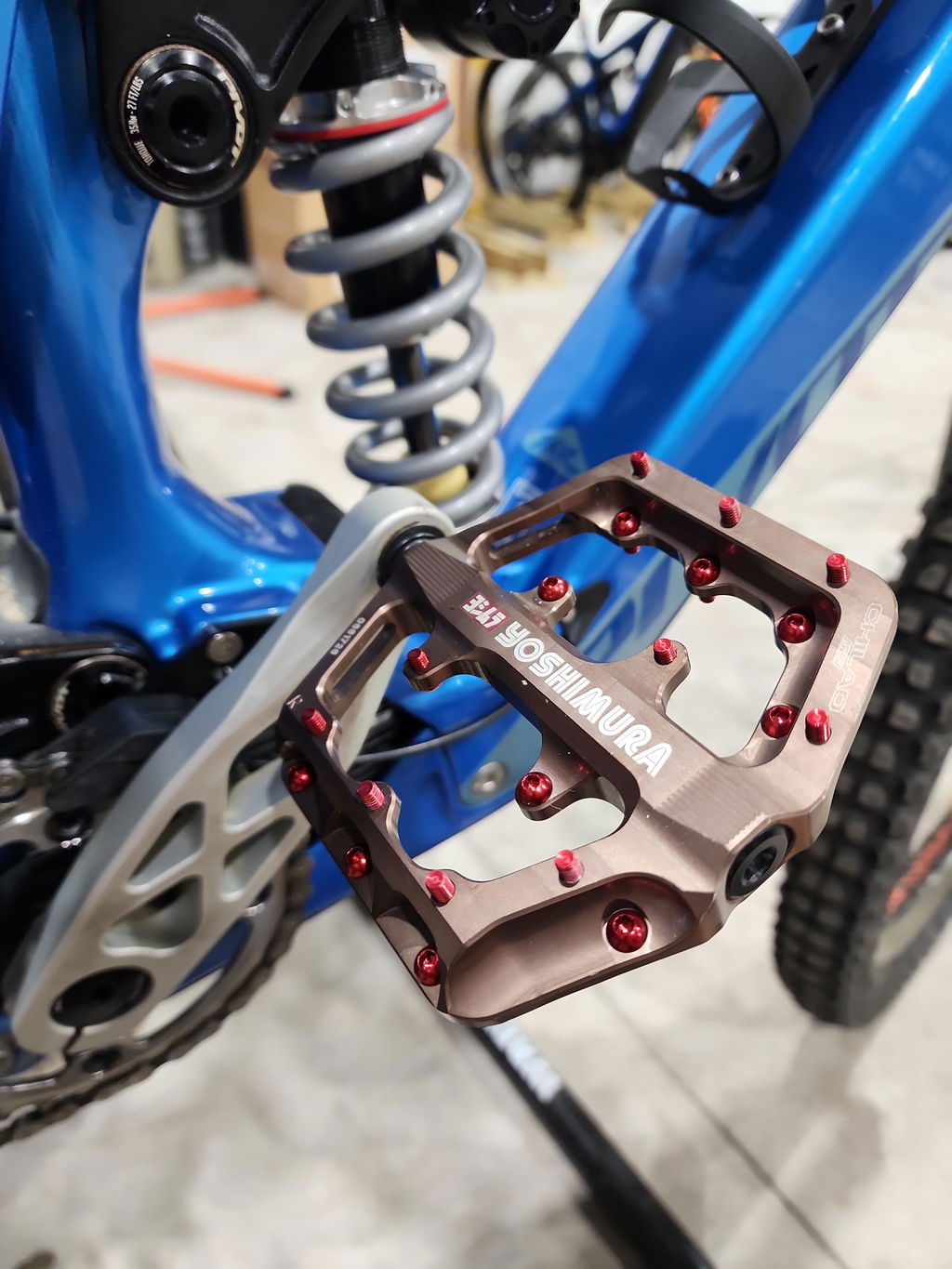

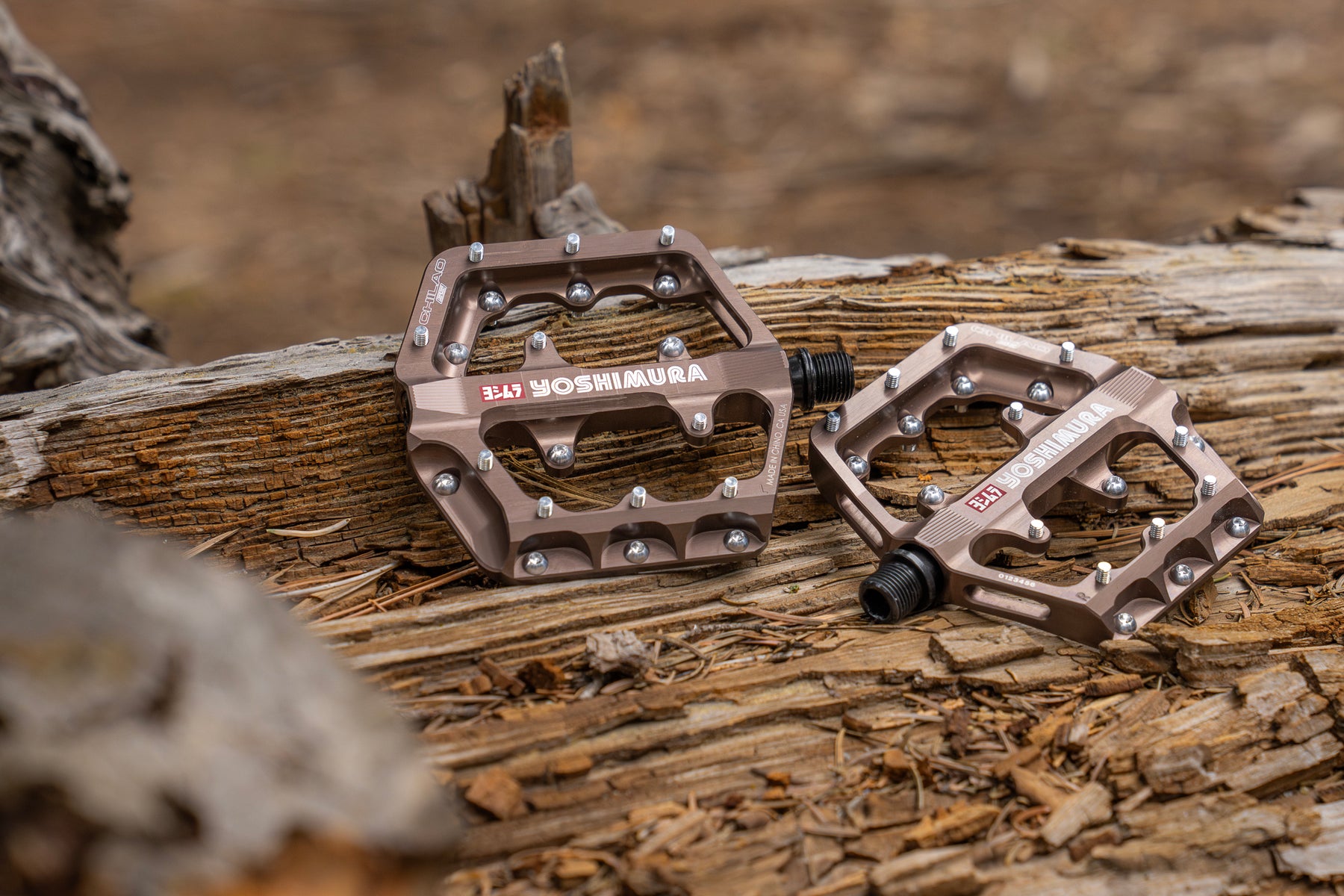

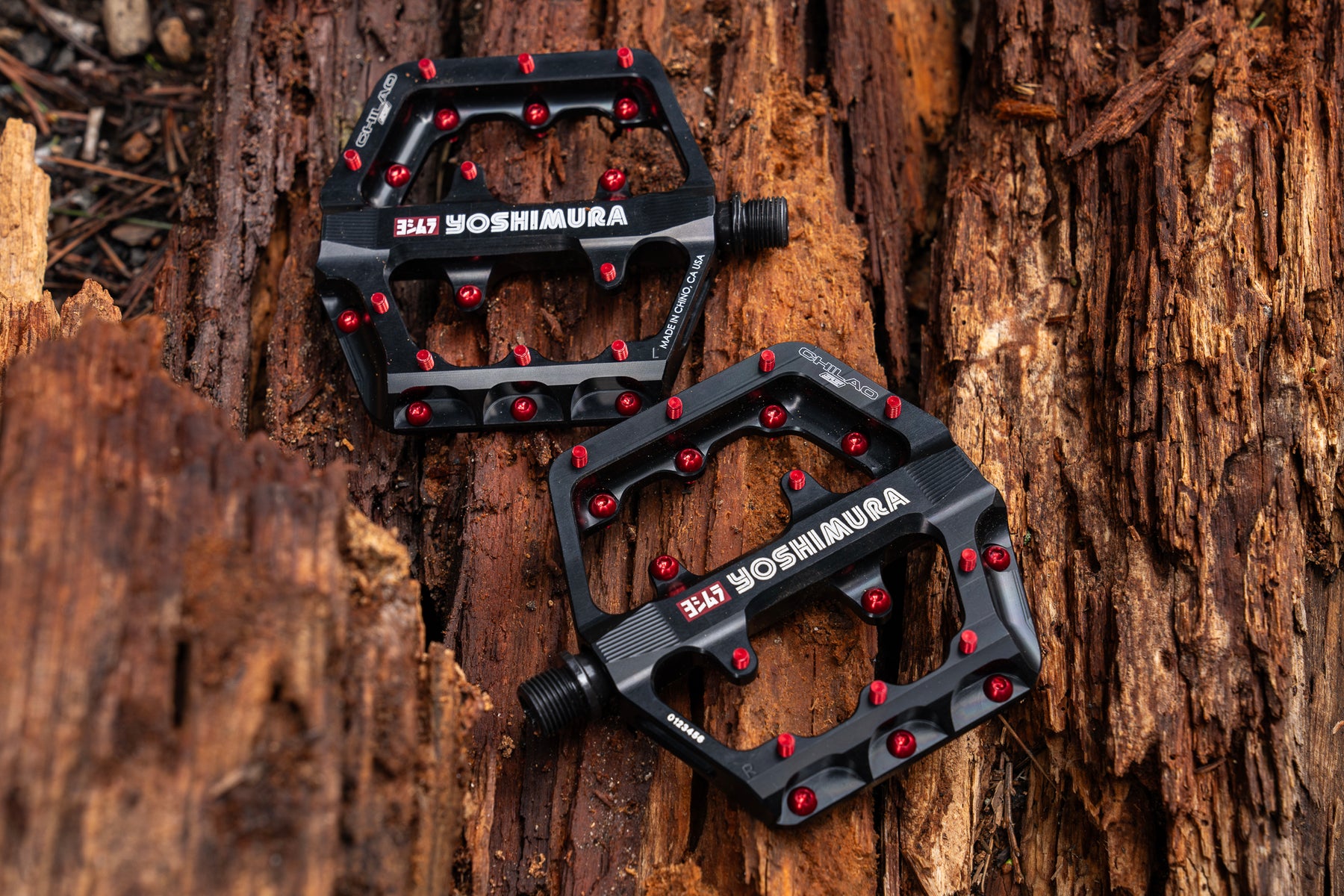

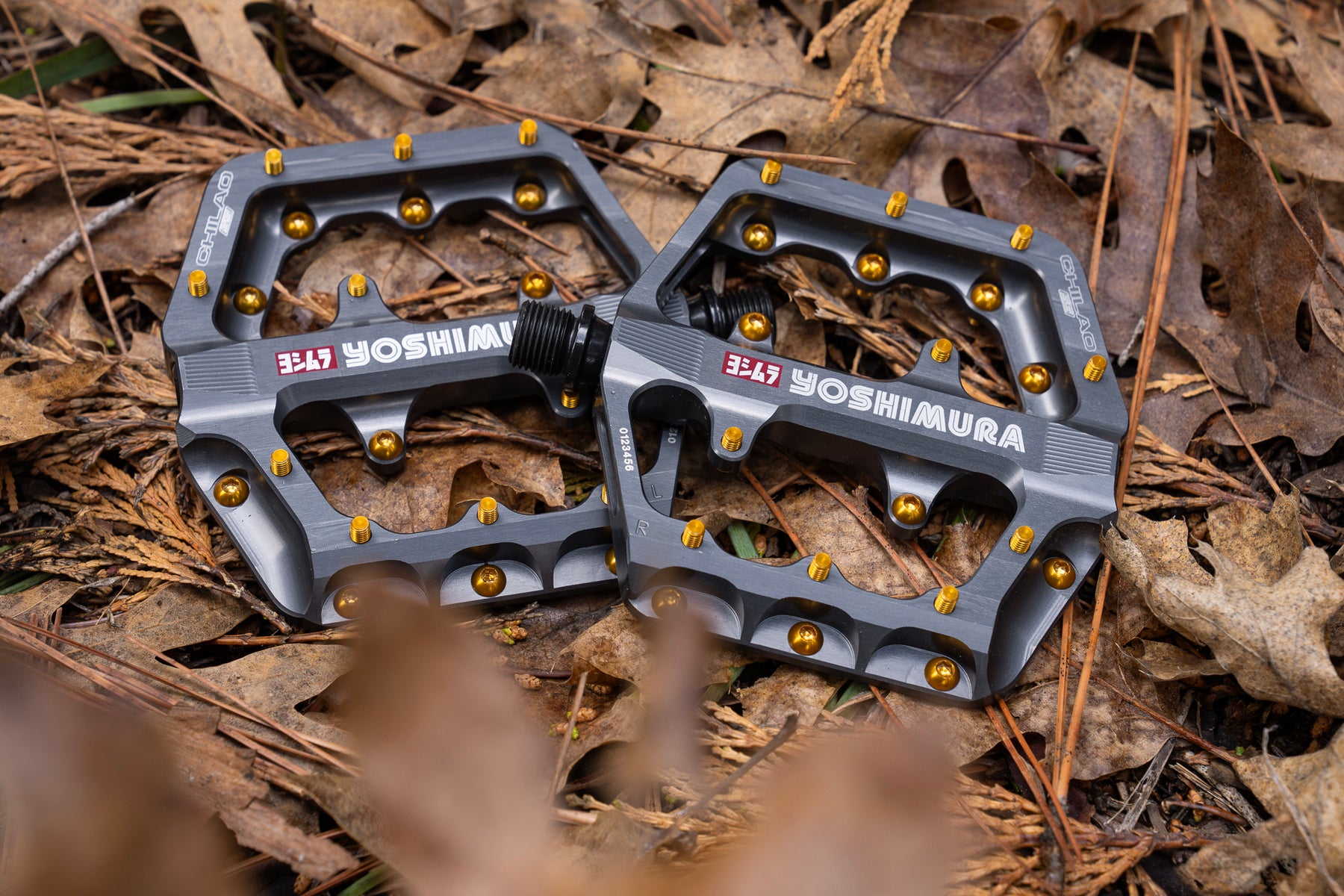

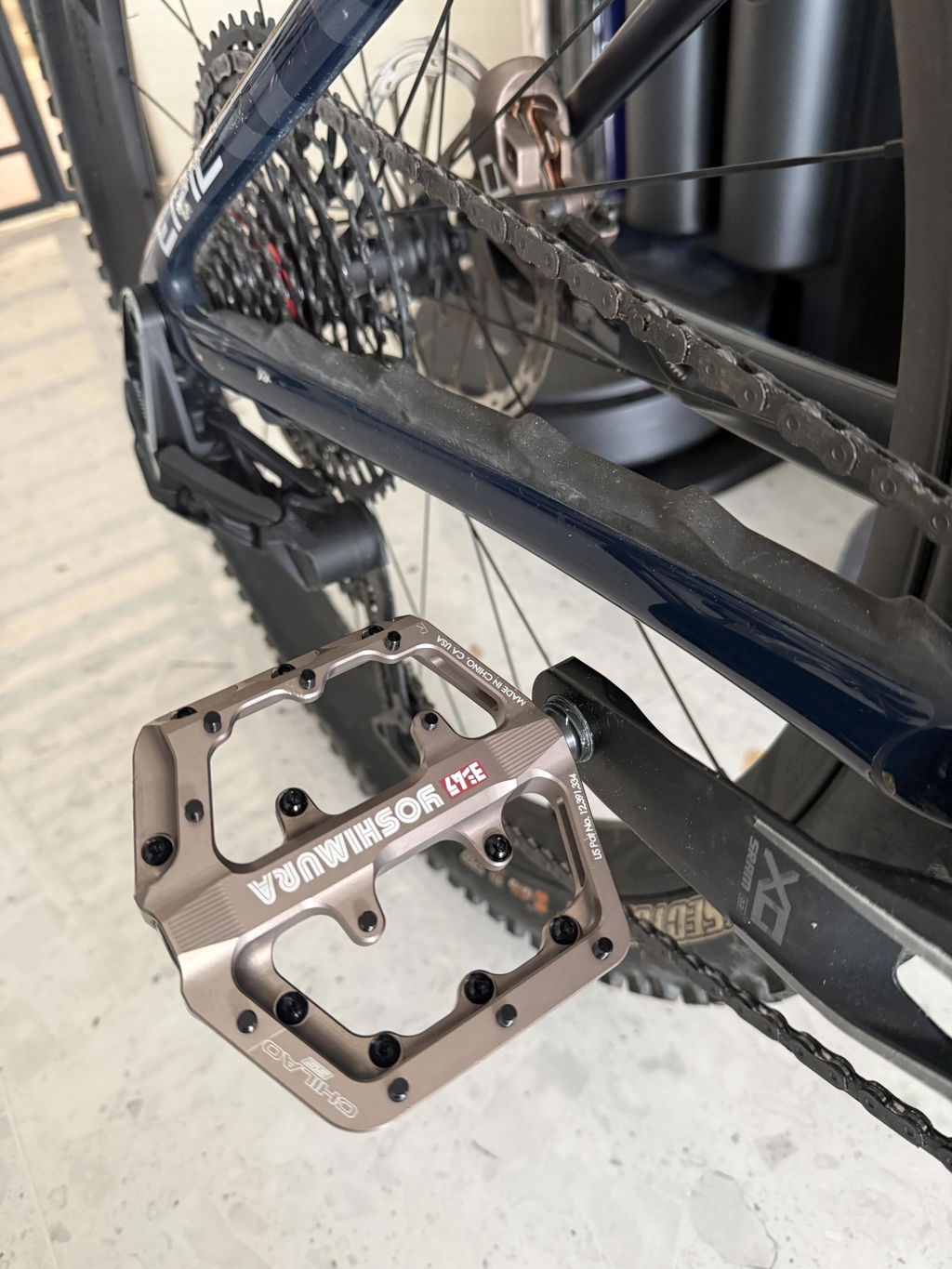

CHILAO SS LARGE PEDALS

Click here to view Chilao SS Pedal Service Video

Click here to view Chilao SS Pedal Rebuild Video

• Chilao SS (Static Spring patent pending) uses a spring to preload the outer bearing against the pedal’s endcap making side load static regardless of wear and installations torque tolerances. The result is a minimized friction point that is normally a result of bearing preload in conventionally designed pedals.


• Chilao SS also minimizes side load to other components in the pedal including the dust seal and bearing races. Once the lock nut is tightened fastener torque has zero affect the bearing’s side load.


• SS’s spindle design includes an Impact flange directing side pedal strike load through the body and spindle NOT the bearings enabling the Chilao SS to take massive side impacts without effecting the bearings.


• Triple outboard bearings, maintain balance between increased bearing surface and a thin pedal body.


• Precision spring bearing preload equates to no “play” in the pedal regardless of wear for its normal service life. This means no more loose chattering pedal sounds!


• Newly refined ultra-thin Chilao SS body is CNC machined from 6061-T6 aluminum loosing 18 grams per set in large compared to the previous Chilao pedal generation.


• New Chilao SS spindle features a 3mm increased Q-factor. They are made in house from propriety alloy steel which are heat treated and Ceracoated insuring they are strong, and resilient.

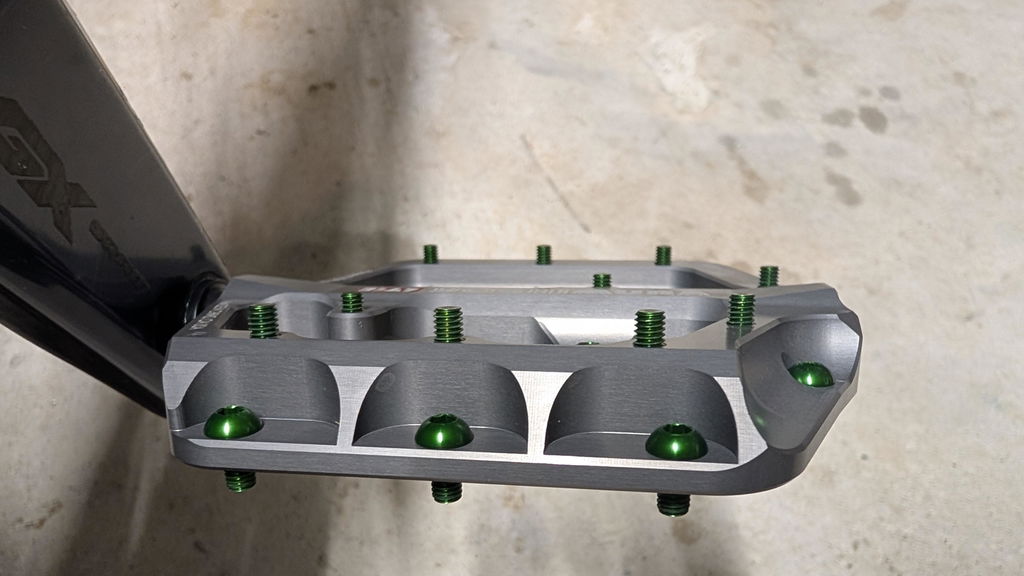

• Machined concave profile cradles the rider’s foot “in” the pedal not on top of it.


• V-Ring dust seals insure maximized protection, durability, and performance to the Chilao SS.


• Ten 7075-T6 aluminum pins on each side provide superior grip and are designed to break away in the event of a pedal strike.


• Frontside rear-facing pins bite harder into the rider’s shoe with increased pedal stroke effort


• Countersunk 6061-T6 alloy end plugs are strike resistant.


• Large pedal body (110mm L x 107.25 W)


• Made in Chino, California USA.


• 360 grams per set incl pins (large)


• Type 3 - hard anodized finish for long lasting durability


• Laser-etched Yoshimura branding


• Every set is serial numbered


• Intended use MTB, Dirt Jumping, BMX


• Fully serviceable. Service kits available separately


• Limited-Lifetime Warranty
